Manufacturer 1over Current Protection 7AM Thermal Overload Protector Switch For Home Automation DC Motor
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | JULUN |
| Sertifika: | CE UL CCC |
| Model numarası: | ksd bimetal termostat |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 |
|---|---|
| Fiyat: | 0.7~1.5 |
| Ambalaj bilgileri: | Karton |
| Teslim süresi: | 1~2 hafta |
| Ödeme koşulları: | TT |
| Yetenek temini: | 1000K/kez |
|
Detay Bilgi |
|||
| Voltaj ve Akım: | AC 125V maks. 15A; AC250V 5A 10A 15A maks. 16A | İki çeşit montaj braketi: | taşınır veya taşınmaz |
|---|---|---|---|
| Yalıtım direnci: | AC50Hz 1500V / dak, arıza körleme yok (Normal Durum) | Sıcaklık sensörü yüzü: | alüminyum kapak veya bakır kafa. |
| Terminal tipi: | A. Terminal Tipi: 4.8*0.5mm ve 4.8*0.8mm'lik 187 serisi, 6.3*0.8mm'lik 250 serisi B. Termina | Yaşam döngüsü: | ≥100000 kez |
| Sıcaklık sapması:: | ±3 / ±5 / ±10 derece veya müşterinin isteğine göre | Ev: | plastik veya seramik. |
| Vurgulamak: | thermal overload protector switch,7AM current protection switch,DC motor thermal protector |
||
Ürün Açıklaması
Our Thermistor Temperature Sensor features temperature deviation options of ±3 / ±5 / ±10 degrees, or according to client's request, ensuring precise temperature control within specified ranges. The terminal type is customizable with options including 187series of 4.8*0.5mm and 4.8*0.8mm, and 250 series of 6.3*0.8mm. Terminal angle can be set to bending angle: 0~90°C for flexible installation.
With voltage and current ratings of AC 125V max 15A, and AC250V 5A 10A 15A max 16A, our sensor is suitable for diverse applications. It includes two mounting bracket options - movable and immovable - to suit specific installation needs.
Ideal for home appliances, industrial equipment, or laboratory settings, our sensor features pin type, jump switch, and temperature control switch for easy integration into existing systems.
- Product Name: Thermistor Temperature Sensor
- Life cycle: ≥100,000 operations
- Temperature sensor face: Aluminum Cap or Copper Head
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Temperature difference: 0 To 25 Degrees (customizable)
- Contact type: Normally Closed or Normally Open

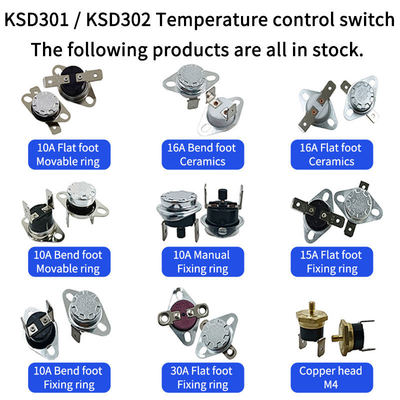

- Model: KSD301
- Current: 10~20A, 10A 250V
| Parameter | Value |
|---|---|
| Mounting Bracket | Movable or Immovable |
| Housing | Plastic or Ceramic |
| Contact Type | Normally Closed or Normally Open |
| Terminal Type | A. 187series: 4.8*0.5mm and 4.8*0.8mm B. 250 Series: 6.3*0.8mm C. Terminal Angle: 0~90°C |
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Temperature Deviation | ±3 / ±5 / ±10°C (customizable) |
| Action Temperature | 0~250℃ |
| Temperature Difference | 0 To 25°C (customizable) |
| Insulation Resistance | AC50Hz 1500V/Min, No Breakdown |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Type | Metal expansion type, hexagonal |

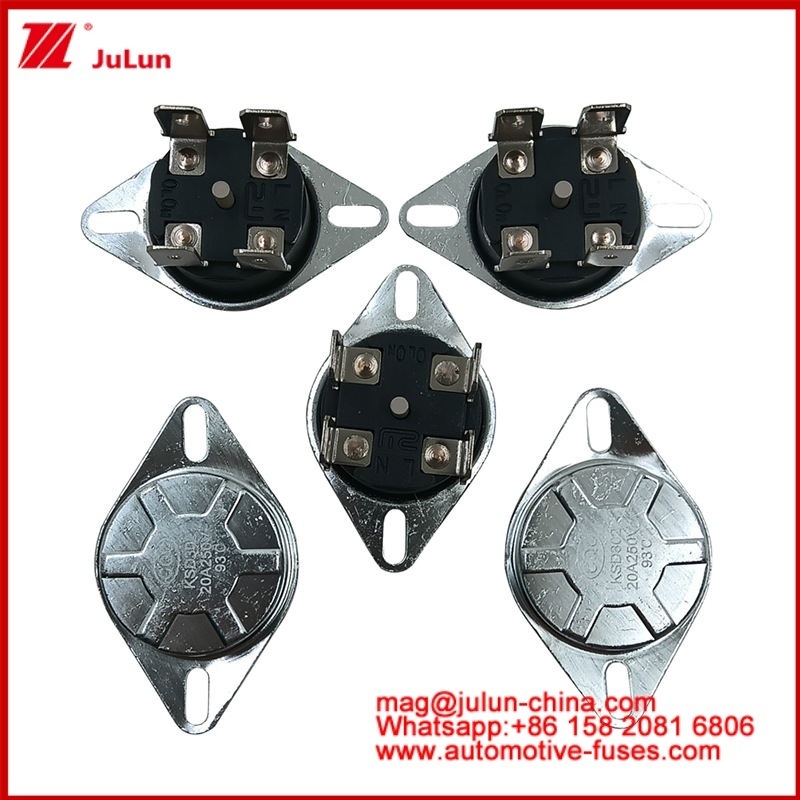

The JULUN KSD Bimetal Thermostat is CE, UL, and CCC certified for quality and safety. Minimum order quantity is 100 units at $0.7~1.5 per unit, with 1-2 week delivery in carton packaging.
Common applications include:
- Household appliances (refrigerators, ovens)
- Industrial machinery temperature control
- Automotive engine temperature regulation
- Medical equipment (incubators, sterilizers)
Operates in 0~250°C range with threaded brass housing option. Features customizable temperature difference (0-25°C), contact type (NC/NO), and temperature deviation (±3/±5/±10°C).
Available customization features:
- Temperature sensor face: Aluminum Cap or Copper Head
- Mounting brackets: Movable or Immovable
- Temperature controller specifications
- Pin type configurations
- Metal expansion type variations
Circuit resistance ≤50mΩ with ≥100,000 operation life cycle. Insulation resistance AC50Hz 1500V/Min with no breakdown.
Comprehensive technical support includes:
- Installation guidance
- Troubleshooting and diagnostics
- Repair and replacement services
- Calibration and testing
- Maintenance and cleaning
Expert technical assistance available for all product-related inquiries.
